Propellant Management Device (PMD) tanks

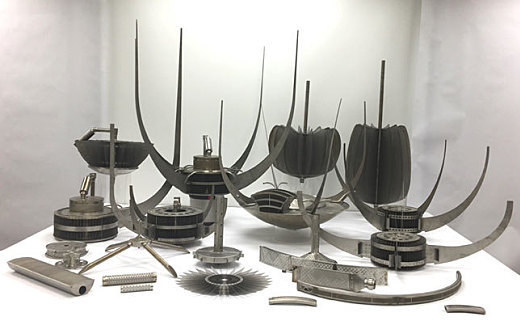

Propellant Management Device (PMD) tanks are used in mono- and bi-propellant systems for the control of fluid and separation of the pressurant gas from the fuel or oxidizer to provide gas-free propellant to the thrusters through the spacecraft life. Northrop Grumman presently manufactures PMD tanks with over 100,000 cubic inches of volume with numerous PMD designs for specific mission applications. We have fabricated PMDs for manned and unmanned space missions traveling in low-Earth and geosynchronous orbits as well as deep space. Our versatile propellant management solutions enable complex multi-task missions. The all-titanium PMD tanks assure long-term propellant compatibility throughout mission life. We have delivered more than 1,200 PMD tank assemblies.

PMD Tanks by Volume PMD Tanks by Part Number Contact Us

PMD Tanks Data Sheets – Sorted by Volume

OA’s P/N	Total Volume (in³)	Total Volume (l)	Diameter (in)	Diameter (mm)	Weight (lb_m)	Weight (kg)	Operating Pressure (psig)	Operating Pressure (bar)	Propellant Volume / Capacity (lb_m or in³)	Program	Note
80568-1	232	3.8	5 OD x 13.9 boss-to-boss (ICD for 80568)	127 mm OD x 353 mm boss-to-boss	3	1.36	348	24		Unknown	LMP-103 HPGP
80421-1	522	8.55	5.0 Diameter x 29 long (ICD for 80421)	126 mm diameter x 717 mm long	4.25	1.93	400	27.6	522 in³	SBD/TOMS	80421 Qualified Environments
80213-1	1,232	20.2	13.33 ID (ICD for 80213)	339 mm ID	4	1.8	310	21.4	—	CLASSIFIED	C 80213 Qualified Environments
80481-1	1,232	20.2	13.33 ID (ICD for 80481)	339 mm ID	4	1.8	300	20.7	—	CLASSIFIED	80481 Protoflight Environments
80454-1	2,280	37.4	16.5 ID (ICD for 80454)	419 mm ID	11.4	5.2	300	20.7	1,520 in³	Orbital Express	Fuel
80304-1	3,575	58.6	19.03 ID (ICD for 80304)	483 mm ID	7.75	3.5	400	27.6	2,349 in³	SPACENET	C
80296-1	3,575	58.6	19.03 ID (ICD for 80296)	483 mm ID	8.0	3.6	425	29.3	—	RCA Sat COM
80353-1	3,575	58.6	19.03 ID (ICD for 80353)	483 mm ID	8.5	3.9	400	27.6	3,575 in³	MARS OBSERVER	C
80480-1	3,575	58.6	19.03 ID (ICD for 80480)	483 mm ID	7.9	3.6	300	20.7	2,349 in³	CLASSIFIED	80480 Protoflight Environments
80379-1	3,660	60	19.06 ID (ICD for 80379)	484 mm ID	10.7	4.9	377	26	3,660 in³	NEAR	M
80396-1	3,776	61.9	19.32 ID (ICD for 80396)	488 mm ID	11.5	5.2	600	41.4	VARIABLE	LUNAR PROSPECTOR
80364-1	5,580	91.5	22.14 ID (ICD for 80364)	562 mm ID	12.5	5.7	400	27.6	150 lb_m	INMARSAT 3	C
80599	5,774	94.6	22.14 ID Sphere (ICD for 80599)	562 mm ID	14.6	6.6	320	22		CLASSIFIED	C 80387 Qualified Environments
80387-1	7,700	126.2	22.14 ID x 29.47 Long (ICD for 80387)	562 mm ID x 749 mm long	20	9.3	400	27.6	220 lb_m	CLASSIFIED	C 80387 Qualified Environments
80309-1	9,210	151	22.14 ID x 32 Long (ICD for 80309)	562 mm ID x 813 mm long	17.8	8.1	318	21.9	NOTE G	CLASSIFIED	C, G
80420-1	9,210	151	22.14 ID x 32 Long (ICD for 80420)	562 mm ID x 813 mm long	17.8	8.1	318	21.9	NOTE G	BSAT	C, G 80420 Protoflight Environments
80426-1	9,712	159.2	21.25 OD x 34.69 long (ICD for 80426)	541 mm OD x 881 mm long	20	9.1	315	21.7	492 lb_m	STAR 2	Ox Tank 80426 Protoflight Environments
80375-1	9,850	161.5	24.6 ID x 29 Long (ICD for 80375)	625 mm ID x 737 mm long	19.0	8.6	420	29	253 lb_m	IRIDIUM	80375 Qualified Environments
80462-1	9,850	161.5	24.6 ID x 29 Long (ICD for 80462)	625 mm ID x 737 mm long	22.0	10.0	420	29	253 lb_m	NFIRE	80462 Protoflight Environments
80334-1	10,679	175.1	23.862 in OD x 33.312 in shoulder-to-shoulder (ICD for 80334)	606 mm OD x 846 mm shoulder-to-shoulder	28.41	12.9	255	17.6	9,274 in³	INMARSAT 2	C 80334 Qualified Environments
80433-1	12,150	199.2	22.14 ID x 39.2 Long (ICD for 80433)	562 mm ID x 994 mm long	20.00	9.1	325	22.4	95% max. fill fraction	MESSENGER	80433 Qualified Environments80433 Protoflight Environments
80310-5	13,743	225.3	23 ID x 40 Long (ICD for 80310)	584 mm ID x 1016 mm long	33.95	15.4	255	17.6	682 lb_m	EUROSTAR	C
80474-1	13,750	225.4	29.8 ID (ICD for 80474)	757 mm ID	18.6	8.4	250	17.2	98% Fill Fraction	MiTex	80474 Qualified Environments
80491-1	13,937	228	21.5 DIA x 48 Long	546.1 mm DIA x 1219.1 mm Long			300	20.7		A2100 Extended Range
80394-1	13,979	229.2	21.25 OD x 47.8 Long (ICD for 80394)	540 mm OD x 1214 mm long	25.7	11.7	300	20.7	13,979 in³	A2100 Ox Family
80406-1	13,979	229.2	21.25 OD x 47.8 Long (ICD for 80406)	540 mm OD x 1214 mm long	25.7	11.7	300	20.7	13,979 in³	A2100 Ox Family	N, C
80339-1	15,598	255.7	31.06 ID (ICD for 80339)	789 mm ID	30.1	13.7	300	20.7	549 lb_m	S-5000	C
80612-1	16,830	275.80	21.25″ ID X 56.43″ Long	540 x 1433mm	37.50 lbs	17.01 kg	300	20.68	16,476 in³
80324-1	18,390	301.5	32.84 ID (ICD for 80324)	834 mm ID	44.5	20.2	400	27.6	587 lb_m	MILSTAR	80324 Qualified Environments
80277-1	18,450	302.5	32.84 ID (ICD for 80277)	834 mm ID	32.6	14.8	250	17.2	894 lb_m NTO	INSAT	C
80561-1	19,000	311	21.25 ID x 65.03 flex plate-to-flex plate (ICD for 80561)	540 mm ID x 1652 mm flex plate-to-flex plate	35	15.88	300	20.7		GOES	Ox
80529-1	19,984	327.48	21.25 ID x 65.03 flex plate-to-flex plate (ICD for 80529)	540 mm ID x 1652 mm flex plate-to-flex plate	33.50	15.20	300	20.7		GPS	Ox
80504-1	19,984	327.48	21.25 ID x 65.03 Long	540 x 1652 mm	33.5	15.2	300	20.68	19,984 in³	BSAT-3A	Derivative of 80405
80390-1	19,984	327.6	21.25 OD x 65.03 Long (ICD for 80390)	540 mm OD x 1652 mm long	33.5	15.2	300	20.7	19,984 in³	A2100 Ox Family	N, C 80390 Qualified Environments
80405-1	19,984	327.6	21.25 OD x 65.03 Long (ICD for 80405)	540 mm OD x 1652 mm long	33.5	15.2	300	20.7	19,984 in³	A2100 Ox Family	N, C
80511-1	19,992	327.7	40.7 ID ellipsoid (ICD for 80511)	1030 mm ID	55.0	24.9	330	22.8	552 lb_m hydrazine	Proprietary	80511 Qualified Environments
80373-1	20,580	337.4	34 ID (ICD for 80373)	864 mm ID	30.5	13.8	300	20.7	20,579 in³	S7000	C 80373 Qualified Environments
80301-1	20,900	342.6	34.25 ID (ICD for 80301)	870 mm ID	34	15.4	255	17.6	1,129 lb_m	ARABSAT	C
80350-1	22,450	368	35.1 ID (ICD for 80350)	892 mm ID	28.9	13.1	260	17.9	22,450 cu. in.	HS – 601	80350 Qualified Environments
80415-1	22,450	368	35.1 ID (ICD for 80415)	892 mm ID	28.9	13.1	260	17.9	22,450 cu. in.	HS – 601 HP
80589-1	22,850	374.4	29.83 DIA x 43.713 long	757.7 mm DIA x1110.3 mm long	62	28.1	315	21.7
80527-1	22,850	374.6	29.5 ID x 43.7 Long (ICD for 80527)	749 mm ID x 1110 mm long	62.0	28.1	315	21.7	qualified to 15,835 in³	COTS/CRS
80317-105	23,400	383.6	27.68 ID x 48 Long (ICD for 80317)	703 mm ID x 1219 mm long	60	27.2	350	24.1	VARIABLE	CLASSIFIED	C
80435-1	26,345	431.9	21.3″ OD X 83.2″ Long (ICD for 80435)	541 mm OD x 2080 mm long	64.7	29.3	300	20.7	26,345 in³	ASTROLINK	ox
80577-1	26,750	438.4	28.55 DIA x54.915 long	725.17 mm DIA x1394.841 mm long	50	22.7	340	23.4			Upgrade of 80398
80356-1	26,750	438.5	28 ID x 48.5 Long (ICD for 80356)	711 mm ID x 1232 mm long	60	27.2	325	22.4	26,700 in³	CLASSIFIED
80398-1	26,750	438.5	28.5 ID x 54.99 Long (ICD for 80398)	597 mm ID x 1394 mm long	50	22.7	350	24.1	26,750 in³	SPS-95, SPS-200	80398 Qualified Environments
80495-1	28,475	466.63	42.11 OD x 83.98 Long	1069.59 mm x 2133.09 mm	260	117.94	315	21.718
80340-1	30,728	503.8	38.97 ID (ICD for 80340)	990 mm ID	37.75	17.1	276	19	1,495 lb_m	S-5000	C
80399-1	32,610	534.6	35.1 ID x 46.42 boss-to-boss (ICD for 80399)	892 mm ID x 1179 mm long	41	18.6	260	17.9	1,160 lb_m	HS – 601 HP	80399 Qualified Environments
80430-1	34,481	565.3	40.44 ID (ICD for 80430)	1027 mm ID	48	21.8	330	22.8	34,481 in³	UNKNOWN	Fuel 80430 Qualified Environments
80466-1	34,481	565.3	40.44 ID (ICD for 80466)	1030 mm ID	48	21.8	330	22.8	34,481 in³	GLAST	Fuel
80338-1	34,500	565.6	40.44 ID (ICD for 80338)	1027 mm ID	56	25.4	250	17.2	1,710 lbs.	GOES	C
80352-1	39,440	646.6	42 ID (ICD for 80352)	1067 mm ID	51.5	23.4	300	20.7	39,230 in³	MO, TELSTAR, S7000	C
80484-1	39,440	646.6	42 ID (ICD for 80484)	1067 mm ID	51.5	23.4	300	20.7	39,230 in³	SDO	80484 Protoflight Environments
80507-1	41,093	673.7	45.6 ID x 37 long (ICD for 80507)	1158 mm ID	66.82	30.31	260	17.9	41,093 in³	Commercial	Ox tank 80507 Qualified Environments SP 2016_3124654
80570-5	41,163	674.54	46.321 OD @ tab ring x modular tank lengths (ICD for 80570)	1177 mm OD @ tab ring x modular tank lengths	74.96	34.0	300	20.68
80564-1	43,576	714.4	50.55 OD x 37.7 boss-to-boss (ICD for 80564)	1284 mm OD x 958 mm boss-to-boss	91.0	41.3	300	20.7	2218.5 lb_m	ComSat	Ox Tank
80470-1	45,161	740.4	40.5 ID x 48.8 Long (ICD for 80470)	1029 mm ID x 1240 mm long	60.0	27.2	340	23.4	45,161 in³	UNKNOWN	Hydrazine 80470 Qualified Environments
80507-2	50,756	832.1	45.6 ID x 43 long (ICD for 80507)	1158 mm ID x 1092 mm long	76.75	34.81	260	17.9	50,756 in³	Commercial	Ox tank 80507 Qualified Environments SP 2016_3124654
80432-1	52,335	858	35.5 OD x 69.2 Long (ICD for 80432)	902 mm OD x 1758 mm long	67.73	30.7	300	20.7	52,335 in³	STAR-2	Fuel Derivative of P/N 80425
80476-1	52,335	858	35.5 OD x 70.23 flex plate-to-flex plate (ICD for 80476)	902 mm ID x 1784 mm flex plate-to-flex plate	63.75	28.9	300	20.7	52,335 in³	OPTUS
80518-1	52,335	858	35.5 OD x 69.2 Long (ICD for 80518)	902 mm OD x 1758 mm long	67.73	30.7	300	20.7	52,335 in³	STAR-2	Fuel
80571-1	55,662	912	46.321 OD (ICD for 80571)	1177 mm OD @ tab ring x modular tank lengths	80.47	36.5	285	19.65			Proprietary
80532-1	57,215	937.6	(ICD for 80532)		43.3	19.7				JUNO	Fuel
80425-1	57,215	938	35.5 OD x 75″ Long (ICD for 80425)	902 mm OD x 1905 mm long	67.73	30.7	300	20.7	1,980 lb_m	STAR-2	Fuel 80425 Qualified Environments
80425-101	57,215	938	35.5 OD x 75″ Long (ICD for 80425)	902 mm OD x 1905 mm long	73.0	33.1	300	20.7	1,980 lb_m	STAR-2	80425 Qualified Environments
80507-3	60,420	990.5	45.6 ID x 49 long (ICD for 80507)	1158 mm ID x 1245 mm long	83.92	38.07	260	17.9	60,420 in³	Commercial	Ox tank 80507 Qualified Environments SP 2016_3124654
80366-1	61,028	1000.5	48.9 ID (ICD for 80366)	1242 mm ID	73.2	33.2	250	17.2	61,028 in³	N-STAR	C
80380-1	61,028	1000.5	48.9 ID (ICD for 80380)	1242 mm ID	70	31.8	250	17.2	61,028 in³	TEMPO
80440-1	61,028	1000.5	48.9 ID (ICD for 80440)	1242 mm ID	70	31.8	250	17.2	61,028 in³	PSA
80535-1	62,545	1024.9	49.25 DIA x49.99 Long	1250.95 mm DIA x 1269.7 mm Long	77.5	35.2	251	17.3		Himawari
80501-1	62,545	1025.4	49.1 x 50.5 L (ICD for 80501)	1247 mm	78.0	35.4	235	16	77,805 in³	TEMPO
80503-1	64,515	1057.22	35.5 ID x 80.5 Long	901.7 x 2044.7 mm	93.2	42.28	300	20.68	64,321 in³	AEHF	Derivative of 80395
80395-1	64,515	1057.7	35.5 ID x 80.5 Long (ICD for 80395)	902 mm ID x 2045 mm long	93.2	42.3	300	20.7	61,289 in³	A2100 Fuel Family
80570-4	66,882	1095.99	46.321 OD @ tab ring x modular tank lengths (ICD for 80570)	1177 mm OD @ tab ring x modular tank lengths	103.18	46.8	300	20.68			SP 2016_3124654
80507-4	70,083	1148.9	45.6 ID x 55 long (ICD for 80507)	1158 mm ID x 1397 mm long	91.53	41.52	260	17.9	70,083 in³	Commercial	Ox 80507 Qualified Environments SP 2016_3124654
80602-1	70,335	1,153	48.9 ID x 54 Long	1242 mm DIA x 1371.6 mm Long	82.7	37.51	250	17
80404-5	73,000	1,196	52 ID Sphere	1321.9 mm			150	10.34		ICM
80507-5	76,525	1254.5	45.6 ID x 59 long (ICD for 80507)	1158 mm ID x 1499 mm long	96.60	43.82	260	17.9	76,525 in³	Commercial	Ox 80507 Qualified Environments SP 2016_3124654
80363-11	77,800	1275.4	48.9 ID x 59.66 Long (ICD for 80363)	1242 mm ID x 1515 mm long	93.5	42.4	250	17.2	77,800 in³	INTELSAT VIIA	C, L
80367-1	77,800	1275.4	48.9 ID x 59.66 Long (ICD for 80367)	1242 mm ID x 1515 mm long	93.5	42.4	250	17.2	77,800 in³	INTELSAT VIIA	C, L
80403-101	77,805	1275.4	48.9 ID x 57.8 Long (ICD for 80403)	1242 mm ID x 1468 mm long	87.61	39.7	250	17.2	77,805 in³	EXTENDED TEMPO
80422-1	77,805	1275.4	48.9 ID x 57.8 Long (ICD for 80422)	1242 mm ID x 1468 mm long	87.61	39.7	250	17.2	77,805 in³	EXTENDED TEMPO
80441-1	77,805	1275.5	48.9 ID x 57.8 Long (ICD for 80441)	1242 mm ID x 1468 mm long	91.0	41.3	250	17.2	77,805 in³	EXTENDED TEMPO
80443-1	86,050	1410.7	35.5 ID x 100.6 Long (ICD for 80443)	901 mm ID x 2553 mm long	110.9	50.3	285	19.7	81,748 in³ (95% FF)	A2100 Fuel Family
80411-1	87,575	1435.7	48.9 ID x 63.34 Long (ICD for 80411)	1242 mm ID x 1609 mm long	99.2	45	250	17.2	87,575 in³	ETS-8
80442-1	87,575	1435.7	48.9 ID x 63.34 Long (ICD for 80442)	1242 mm ID x 1609 mm long	100.5	45.6	250	17.2	87,575 in³	EXTENDED TEMPO
80456-1	87,575	1435.7	48.9 ID x 63.34 Long (ICD for 80456)	1242 mm ID x 1609 mm long	100.5	45.6	250	17.2	87,575 in³	MRO
80482-1	87,575	1435.7	48.9 ID x 63.34 Long (ICD for 80482)	1242 mm ID x 1609 mm long	99.20	45	250	17.2	87,575 in³	DS2000
80528-1	92,247	1511.68	35.26 ID x 108.87 boss-to-boss (ICD for 80528)	896 mm ID x 2765 mm boss-to-boss	122	55.34	300	20.7		GPS	Fuel
80391-1	92,247	1512.3	35.5 ID x 108.87 boss-to-boss (ICD for 80391)	896 mm ID x 2765 mm boss-to-boss	122	55.3	300	20.7	87,634 in³	A2100 Fuel Family	80391 Qualified Environments
80570-3	92,409	1514.31	46.321 OD @ tab ring x modular tank lengths (ICD for 80570)	1177 mm OD @ tab ring x modular tank lengths	129.63	58.80	300	20.68		GEO Commercial	SP 2016_3124654
80560-1	103,555	1697	35.26 ID x 120.87 boss-to-boss (ICD for 80560)	96 mm ID x 3070 mm boss-to-boss	141.7	64.27	300	20.7		GOES	Fuel
80601-1	104,344	1,709.91	48.9	1242.06	114.9	52.12	235	16.2			DS2000
80517-1	104,344	1710.6	48.9″ ID X 72.3″ Long (ICD for 80517)	1242 mm ID x 1836 mm long	130	59	250	17.2	xxx,xxx in³	LS1300	80517 Qualified Environments
80554-1	107,000	1754	49.25 OD x 75.85 long (ICD for 80554)	1251 mm interface OD x 1927 mm long	135	61.2	250	17.2		MAVEN
80570-2	111,596	1828.73	46.321 OD @ tab ring x modular tank lengths (ICD for 80570)	1177 mm OD @ tab ring x modular tank lengths	149.69	67.90	300	20.68		GEO Commercial	SP 2016_3124654
80434-1	117,154	1920.6	35.6″ OD X 133.9″ Long (ICD for 80434)	904 mm OD x 3401 mm long	208	94.3	300	20.7	117,154 in³	ASTROLINK	fuel
80471-1	117,154	1920.6	35.6″ OD X 133.9″ Long (ICD for 80471)	904 mm OD x 3401 mm long	208	94.3	300	20.7	113,639 in³	SBIRS
80576-1	131,282	2151	45.6 x 93 long boss-to-boss (ICD for 80576)	1158 mm x 2362 mm long boss-to-boss	133.7	60.6	260	17.9	– in³	GEO Commercial	SP 2016_3124654
80570-1	133,872	2194	46.321 OD @ tab ring x modular tank lengths (ICD for 80570)	1177 mm OD @ tab ring x modular tank lengths	173.28	78.60	300	20.68		GEO Commercial	SP 2016_3124654
80576-2	140,945	2310	45.6 x 99 long boss-to-boss (ICD for 80576)	1158 mm x 2515 mm long boss-to-boss	140.8	63.9	260	17.9	– in³	Commercial	SP 2016_3124654

NOTES

C. Customer proprietary surface tension device
G. Between 10 & 99.5% total volume
L. 80363-11 hast Titanium screens. 80367-11 has stainless steel screens
M. Spinner Tank
N. Proton launch compatible

PMD Tanks Data Sheets – Sorted by Part Number

OA’s P/N	Total Volume (in³)	Total Volume (l)	Diameter (in)	Diameter (mm)	Weight (lb_m)	Weight (kg)	Operating Pressure (psig)	Operating Pressure (bar)	Propellant Volume / Capacity (lb_m or in³)	Propellant Volume / Capacity (l)	Program	Note
80213-1	1,232	20.2	13.33 ID (ICD for 80213)	339 mm ID	4.00	1.8	310	21.4	—	—	CLASSIFIED	C 80213 Qualified Environments
80277-1	18,450	302.5	32.84 ID (ICD for 80277)	834 mm ID	32.60	14.8	250	17.2	894 lb_m NTO	405.5 kg	INSAT	C 80277 Qualified Environments
80296-1	3,575	58.6	19.03 ID (ICD for 80296)	483 mm ID	8.00	3.63	425	29.3	—	—	RCA Sat COM	80296 Qualified Environments
80301-1	20,900	342.6	34.25 ID (ICD for 80301)	870 mm ID	34.00	15.4	255	17.6	1,129 lb_m	512.1 kg	ARABSAT	C 80301 Qualified Environments
80304-1	3,575	58.6	19.03 ID (ICD for 80304)	483 mm ID	7.75	3.5	400	27.6	2,349 in³	38.5 liters	SPACENET	C
80309-1	9,210	151	22.14 ID x 32 Long (ICD for 80309)	562 mm ID x 813 mm long	17.80	8.1	318	21.9	Note G	Note G	CLASSIFIED	C, G
80310-5	13,743	225.3	23 ID x 40 Long (ICD for 80310)	584 mm ID x 1016 mm long	33.95	15.4	255	17.6	682 lb_m	309.4 kg	EUROSTAR	C
80317-105	23,400	383.6	27.68 ID x 48 Long (ICD for 80317)	703 mm ID x 1219 mm long	60.00	27.2	350	24.1	VARIABLE	VARIABLE	CLASSIFIED	C 80317 Qualified Environments
80324-1	18,390	301.5	32.84 ID (ICD for 80324)	834 mm ID	44.50	20.2	400	27.6	587 lb_m	266 kg	MILSTAR	C 80324 Qualified Environments
80334-1	10,679	175.1	23.862 in OD x 33.312 in shoulder-to-shoulder (ICD for 80334)	606 mm OD x 846 mm shoulder-to-shoulder	28.41	12.9	255	17.6	9,274 in³	152 liters	INMARSAT 2	C 80334 Qualified Environments
80338-1	34,500	565.6	40.44 ID (ICD for 80338)	1027 mm ID	56.00	25.4	250	17.2	1,710 lb_m	775.7 kg	GOES	C 80338 Qualified Environments
80339-1	15,598	255.7	31.06 ID (ICD for 80339)	789 mm ID	30.10	13.7	300	20.7	549 lb_m	249 kg	S-5000	C 80339 Qualified Environments
80340-1	30,728	503.8	38.97 ID (ICD for 80340)	990 mm ID	37.75	17.1	276	19	1,495 lb_m	678.1 kg	S-5000	C 80340 Qualified Environments
80348-1	11,350	186.1	28 ID (ICD for 80348)	711 mm ID	43.0	19.5	435	30	10,215 in³	167 liters
80350-1	22,450	368	35.1 ID (ICD for 80350)	892 mm ID	28.90	13.1	260	17.9	22,450 in³	3679 liters	HS – 601	80350 Qualified Environments
80352-1	39,440	646.6	42 ID (ICD for 80352)	1067 mm ID	51.50	23.4	300	20.7	39,230 in³	642.9 liters	MO, TELSTAR, S7000	C 80352 Qualified Environments80352 Protoflight Environments
80353-1	3,575	58.6	19.03 ID (ICD for 80353)	483 mm ID	8.50	3.9	400	27.6	3,575 in³	58.6 liters	MARS OBSERVER	C 80353 Protoflight Environments
80356-1	26,750	438.5	28 ID x 48.5 Long (ICD for 80356)	711 mm ID x 1232 mm long	60.00	27.2	325	22.4	26,700 in³	437.5 liters	CLASSIFIED	80356 Qualified Environments
80363-11	77,800	1275.4	48.9 ID x 59.66 Long (ICD for 80363)	1242 mm ID x 1515 mm long	93.50	42.4	250	17.2	77,800 in³	1274.9 liters	INTELSAT VIIA	C, L 80363 Qualified Environments80363 Protoflight Environments
80364-1	5,580	91.5	22.14 ID (ICD for 80364)	562 mm ID	12.50	5.7	400	27.6	150 lb_m	68 kg	INMARSAT 3	80364 Protoflight Environments
80366-1	61,028	1000.5	48.9 ID (ICD for 80366)	1242 mm ID	73.20	33.2	250	17.2	61,028 in³	1000 liters	N-STAR	C 80366 Qualified Environments80366 Protoflight Environments
80367-1	77,800	1275.4	48.9 ID x 59.66 Long (ICD for 80367)	1242 mm ID x 1515 mm long	93.50	42.4	250	17.2	77,800 in³	1274.9 liters	INTELSAT VIIA	C, L 80367 Qualified Environments80367 Protoflight Environments
80373-1	20,580	337.4	34 ID (ICD for 80373)	864 mm ID	30.50	13.8	300	20.7	20,579 in³	337.2 liters	S7000	C 80373 Qualified Environments80373 Protoflight Environments
80375-1	9,850	161.5	24.6 ID x 29 Long (ICD for 80375)	625 mm ID x 737 mm long	19.00	8.6	420	29	253 lb_m	114.8 kg	IRIDIUM	80375 Qualified Environments
80379-1	3,660	60	19.06 ID (ICD for 80379)	484 mm ID	10.70	4.9	377	26	3,660 in³	60 liters	NEAR	M
80380-1	61,028	1000.5	48.9 ID (ICD for 80380)	1242 mm ID	70.00	31.8	250	17.2	61,028 in³	1000 liters	TEMPO	80380 Qualified Environments
80387-1	7,700	126.2	22.14 ID x 29.47 Long (ICD for 80387)	562 mm ID x 749 mm long	20.00	9.1	400	27.6	220 lb_m	99.8 kg	CLASSIFIED	C 80387 Qualified Environments
80390-1	19,984	327.5	21.25 ID x 65 Long (ICD for 80391)	540 mm ID x 1652 mm long	33.50	15.2	300	20.7			A2100 Ox Family	80390 Qualified Environments
80391-1	92,247	1512.3	35.26 ID x 108.87 boss-to-boss (ICD for 80391)	896 mm ID x 2765 mm boss-to-boss	122.00	55.3	300	20.7	87,634 in³	1436.1 liters	A2100 Fuel Family	80391 Qualified Environments
80394-1	13,979	229	21.25 ID x 47.8 Long (ICD for 80394)	540 mm ID x 1214 mm long	25.7	11.7	300	20.7	13,979 in³	229.1 liters	A2100 Ox Family	80394 Qualified Environments
80395-1	64,515	1057.7	35.5 ID x 80.5 Long (ICD for 80395)	902 mm ID x 2045 mm long	93.20	42.3	300	20.7	61,289 in³	1004.3 liters	A2100 Fuel Family	80395 Qualified Environments
80396-1	3,776	61.9	19.32 ID (ICD for 80396)	488 mm ID	11.50	5.2	600	41.4	VARIABLE	VARIABLE	LUNAR PROSPECTOR
80398-1	26,750	438.5	28.5 ID x 54.99 Long (ICD for 80398)	597 mm ID x 1394 mm long	50.00	22.7	350	24.1	26,750 in³	438.4 liters	SPS-95, SPS-200	80398 Qualified Environments
80399-1	32,610	534.6	35.1 ID x 46.42 boss-to-boss (ICD for 80399)	892 mm ID x 1179 mm long	41.00	18.6	260	17.9	1,160 lb_m	526.2 kg	HS – 601 HP	80399 Qualified Environments
80403-101	77,805	1275.5	48.9 ID x 57.8 Long (ICD for 80403)	1242 mm ID x 1468 mm long	87.61	39.7	250	17.2	77,805 in³	1275 liters	EXTENDED TEMPO	80403 Protoflight Environments
80404-5	73,000	1,196	52 ID Sphere	1321.9 mm			150	10.34			ICM
80405-1	19,984	327.6	21.25 OD x 65.03 Long (ICD for 80405)	540 mm OD x 1652 mm long	33.50	15.2	300	20.7	19,984 in³	327.5 liters	A2100 Ox Family	N, C
80406-1	13,979	229.2	21.25 OD x 47.8 Long (ICD for 80406)	540 mm OD x 1214 mm long	25.70	11.7	300	20.7	13,979 in³	229.1 liters	A2100 Ox Family	N, C
80411-1	87,575	1435.7	48.9 ID x 63.34 Long (ICD for 80411)	1242 mm ID x 1609 mm long	99.20	45	250	17.2	87,575 in³	1435.1 liters	ETS-8	80411 Qualified Environments
80415-1	22,450	368	35.1 ID (ICD for 80415)	892 mm ID	28.90	13.1	260	17.9	22,450 in³	367.9 liters	HS – 601
80420-1	9,210	151	22.14 ID x 32 Long (ICD for 80420)	562 mm ID x 813 mm long	17.80	8.1	318	21.9	Note G	Note G	BSAT	C, G 80420 Qualified Environments
80421-1	522	8.55	5.0 Diameter x 29 long (ICD for 80421-1)	126 mm diameter x 717 mm long	4.25	1.93	400	27.6	522 in³	8.6 liters	SBD/TOMS	80421 Qualified Environments
80422-1	77,805	1275.5	48.9 ID x 57.8 Long (ICD for 80422)	1242 mm ID x 1468 mm long	87.61	39.7	250	17.2	77,805 in³	1275 liters	EXTENDED TEMPO	80422 Protoflight Environments
80425-1	57,215	938	35.5 OD x 75″ Long (ICD for 80425)	902 mm OD x 1905 mm long	67.73	30.7	300	20.7	1,980 lb_m	898.1 kg	STAR-2	Fuel 80425 Qualified Environments
80425-101	57,215	938	35.5 OD x 75″ Long	902 mm OD x 1905 mm long	73	33.1	300	20.7	1,980 lb_m	898.1 kg	STAR-2	Fuel
80426-1	9,712	159.2	21.25 OD x 34.69 (ICD for 80426)	541 mm OD x 881 mm long	20.00	9.1	315	21.7	492 lb_m	223.2 kg	STAR 2	Ox 80426 Qualified Environments
80430-1	34,481	565.3	40.44 ID (ICD for 80430)	1027 mm ID	48.00	21.8	330	22.8	34,481 in³	565 liters	UNKNOWN	80430 Qualified Environments
80432-1	52,335	858	35.5 OD x 69.2 Long (ICD for 80432)	902 mm OD x 1758 mm long	67.73	30.7	300	20.7	52,335 in³	857.6 liters	STAR-2	Fuel
80433-1	12,150	199.2	22.14 ID x 39.2 Long (ICD for 80433)	562 mm ID x 994 mm long	20.00	9.1	325	22.4	95% max. fill fraction	95% max. fill fraction	MESSENGER	Fuel 80433 Qualified Environments80433 Protoflight Environments
80434-1	117,154	1920.6	35.6″ OD X 133.9″ Long (ICD for 80434)	904 mm OD x 3401 mm long	208.00	94.3	300	20.7	117,154 in³	1919.8 liters	ASTROLINK	Fuel
80435-1	26,345	431.9	21.3″ OD X 83.2″ Long (ICD for 80435)	541 mm OD x 2080 mm long	64.70	29.3	300	20.7	26,345 in³	431.7 liters	ASTROLINK	Ox 80435 Qualified Environments
80440-1	61,028	1000.5	48.9 ID	1242 mm ID	70.00	31.8	250	17.2	61,028 in³	1000 liters	PSA
80441-1	77,805	1275.5	48.9 ID x 57.8 Long (ICD for 80441)	1242 mm ID x 1468 mm long	91.00	41.3	250	17.2	77,805 in³	1275 liters	EXTENDED TEMPO	80441 Protoflight Environments
80442-1	87,575	1435.7	48.9 ID x 63.34 Long (ICD for 80442)	1242 mm ID x 1609 mm long	100.50	45.6	250	17.2	87,575 in³	1435.1 liters	EXTENDED TEMPO	80442 Protoflight Environments
80443-1	86,050	1410.7	35.5 ID x 100.6 Long (ICD for 80443)	901 mm ID x 2553 mm long	110.90	50.3	285	19.7	81,748 in³ (95% FF)	1339.6 liters (95% FF)	A2100 Fuel Family
80454-1	2,280	37.4	16.5 ID (ICD for 80454)	419 mm ID	11.4	5.2	300	20.7	1,520 in³	24.9 liters	Orbital Express	Fuel
80456-1	87,575	1435.7	48.9 ID x 63.3 Long (ICD for 80456)	1242 mm ID x 1609 mm long	100.50	45.6	250	17.2	87,575 in³	1435.1 liters	MRO	Fuel and Ox
80462-1	9,850	161.5	24.6 ID x 29 Long (ICD for 80462)	625 mm ID x 736 mm long	22.0	10	420	29	9,850 in³	161.4 liters	NFIRE	Fuel 80462 Protoflight Environments
80466-1	34,481	565.3	40.44 ID (ICD for 80466)	1030 mm ID	48.00	21.8	330	22.8	34,481 in³	565 liters	GLAST	Fuel 80466 Protoflight Environments
80470-1	45,161	740.4	40.5 ID x 48.8 Long (ICD for 80470)	1029 mm ID x 1240 mm long	60.00	27.2	340	23.4	45,161 in³	740.1 liters	UNKNOWN	80470 Qualified Environments
80471-1	117,154	1920.6	35.6 ID x 133.9 Long	904 mm ID x 3401 mm long	208.00	94.3	300	20.7	113,639 in³	1862.2 liters	SBIRS
80474-1	13,750	225.4	29.8 ID (ICD for 80474)	757 mm ID	18.60	8.4	250	17.2	98% Fill Fraction	98% Fill Fraction	UNKNOWN	80474 Qualified Environments
80476-1	52,335	858	35.5 ID x 70.23 flex plate-to-flex plate (ICD for 80476)	902 mm ID x 1784 mm long	63.75	28.9	300	20.7	52,335 in³	857.6 liters	Optus
80480-1	3,575	58.6	19.03 ID (ICD for 80480)	483 mm ID	7.90	3.6	300	20.7	2,349 in³	38.5 liters	CLASSIFIED	80480 Protoflight Qualification Environment)
80481-1	1,232	20.2	13.33 ID (ICD for 80481)	339 mm ID	4.00	1.8	300	20.7			CLASSIFIED	(80481 Protoflight Qualification Environment)
80482-1	87,575	1435.7	48.9 ID x 63.35 Long (ICD for 80482)	1242 mm ID x 1609 mm long	99.20	45	250	17.2	87,575 in³	1435.1 liters	DS2000
80484-1	39,440	646.6	42 ID (ICD for 80484)	1067 mm ID	51.5	23.4	300	20.7	39,230 in³	642.9 liters	SDO	80484 Protoflight Environments
80491-1	13,937	228	21.5 DIA x 48 Long	546.1 mm DIA x 1219.1 mm Long			300	20.7			A2100 Extended Range
80495-1	28,475	466.63	42.11 OD x 83.98 Long	1069.59 mm x 2133.09 mm	260	117.94	315	21.718
80501-1	62,545	1025.4	49.1 x 50.5 L (ICD for 80501)	1247 mm	78.0	35.4	235	16	77,805 in³	1275 liters	TEMPO	Spherical version of the 49-inch family
80503-1	64,515	1057.22	35.5 ID x 80.5 Long	901.7 x 2044.7 mm	93.2	42.28	300	20.68	64,321 in³	1054.05 liters	AEHF	Derivative of 80395
80504-1	19,984	327.48	21.25 ID x 65.03 Long	540 x 1652 mm	33.5	15.2	300	20.68	19,984 in³	327.48 liters	BSAT-3A	Derivative of 80405
80506-1	16,920	277.4	27.25 ID x 22.14 long (ICD for 80506)	692 mm ID x 562 mm long	36.10	16.4	256	17.7			Commercial	Fuel (80506 Qualified Environment)
80506-2	20,340	333.5	27.25 ID x 28.14 long (ICD for 80506)	692 mm ID x 715 mm long	41.60	18.9	256	17.7			Commercial	Fuel (80506 Qualified Environment)
80506-3	23,760	389.5	27.25 ID x 34.14 long (ICD for 80506)	692 mm ID x 867 mm long	46.40	21	256	17.7			Commercial	Fuel (80506 Qualified Environment)
80506-4	27,180	445.6	27.25 ID x 40.14 long (ICD for 80506)	692 mm ID x 1020 mm long	49.45	22.4	256	17.7			Commercial	Fuel (80506 Qualified Environment)
80506-5	30,600	501.7	27.25 ID x 46.144 long (ICD for 80506)	692 mm ID x 1172 mm long	53.35	24.2	256	17.7			Commercial	Fuel (80506 Qualified Environment)
80506-6	33,450	548.4	27.25 ID x 51.14 long (ICD for 80506)	692 mm ID x 1299 mm long	56.40	25.6	256	17.7			Commercial	Fuel (80506 Qualified Environment)
80506-7	36,300	595.1	27.25 ID x 56.14 long (ICD for 80506)	692 mm ID x 1426 mm long	59.45	27	256	17.7			Commercial	Fuel (80506 Qualified Environment)
80507-1	41,093	673.7	45.60 (ICD for 80507)	1158 mm ID	66.82	30.31	260	17.9	41,093 in³	673.4 liters	Commercial	Ox (80507 Qualified Environment) SP 2016_3124654
80507-2	50,756	832.1	45.6 ID x 43 long (ICD for 80507)	1158 mm ID x 1092 mm long	76.75	34.81	260	17.9	50,756 in³	831.7 liters	Commercial	Ox (80507 Qualified Environment) SP 2016_3124654
80507-3	60,420	990.5	45.6 ID x 49 long (ICD for 80507)	1158 mm ID x 1245 mm long	83.92	38.07	260	17.9	60,420 in³	990.1 liters	Commercial	Ox (80507 Qualified Environment) SP 2016_3124654
80507-4	70,083	1148.9	45.6 ID x 55 long (ICD for 80507)	1158 mm ID x 1397 mm long	91.53	41.52	260	17.9	70,083 in³	1148.5 liters	Commercial	Ox (80507 Qualified Environment) SP 2016_3124654
80507-5	76,525	1254.5	45.6 ID x 59 long (ICD for 80507)	1158 mm ID x 1499 mm long	96.60	43.82	260	17.9	76,525 in³	1254 liters	Commercial	Ox (80507 Qualified Environment) SP 2016_3124654
80511-1	19,992	327.7	40.7 ID ellipsoid (ICD for 80511)	1030 mm ID	55.0	24.9	330	22.8	qualified to 552 lb_m of hydrazine	qualified to 250.4 kg of hydrazine	Proprietary	Hydrazine, 80511 Qualified Environments
80517-1	104,344	1710.6	48.9 ID x 72.3 long (ICD for 80517)	1242 mm ID x 1836 mm long	130.0	59	250	17.2			Commercial	Fuel and Ox 80517 Qualified Environments
80518-1	52,335	858	35.5 OD x 69.2 Long (ICD for 80518)	902 mm OD x 1758 mm long	67.73	30.7	300	20.7	52,335 in³	857.6 liters	STAR-2	Fuel
80519-1	—	—	—	—	—	—	—	—	—	—	NPOESS	NPOESS was cancelled by the government
80520-1	76,525	1254.5	45.95 ID x 59.15 long (ICD for 80520)	1158 mm ID x 1524 mm long	139.0	59	338	23.3	qualified to 54,353 in³	qualified to 890.7 liters	Proprietary	All-metal version of 80507. 80520 Qualified Environments 80520 Qualified Environments, Part 2 SP 2016_3124654
80521-1	—	—	—	—	—	—	—	—	—	—	Orion CEV NTO	Program cancelled
80521-3	—	—	—	—	—	—	—	—	—	—	Orion CEV NTO	Program cancelled
80522-1	—	—	—	—	—	—	—	—	—	—	Orion CEV MMH	Program cancelled
80522-3	—	—	—	—	—	—	—	—	—	—	Orion CEV MMH	Program cancelled
80527-1	22,850	374.6	29.5 ID x 43.7 Long (ICD for 80527)	749 mm ID x 1110 mm long	62.0	28.1	315	21.7	qualified to 15,835 in³	qualified to 259.5 liters	COTS/CRS	Hydrazine 80527 Qualified Environments
80528-1	92,247	1511.68	35.26 ID x 108.87 boss-to-boss (ICD for 80528)	896 mm ID x 2765 mm boss-to-boss	122	55.34	300	20.7			GPS	Fuel
80529-1	19,984	327.48	21.25 ID x 65.03 flex plate-to-flex plate (ICD for 80529)	540 mm ID x 1652 mm flex plate-to-flex plate	33.50	15.20	300	20.7			GPS	Ox
80532-1	57,215	937.6	(ICD for 80532)		43.3	19.7					JUNO	Fuel
80533-1											JUNO	Ox
80535-1	62,545	1024.9	49.25 DIA x49.99 Long	1250.95 mm DIA x 1269.7 mm Long	77.5	35.2	251	17.3			Himawari
80540-1	1,892	31	15.38 ID (ICD for 80540)	391 mm ID	5.4	2.45	250	17.2	1,835 in³	30.1 liters	LADEE	80540 Qualified Environments
80545-1	15685	257	26.63 OD x 40.737 Long (ICD for 80545)	676 mm OD x 1035 mm long	36.4	16.5	350	24	392 lb_m N₂H₄	177.8 kg N₂H₄	JWST	Fuel
80546-1	7996	131	26.63 OD x 29.058 Long (ICD for 80546)	676 mm OD x 738 mm long	24.2	11	350	24	291 lb_m N₂O₄	132 kg N₂O₄	JWST	Ox (this is a shorter version of the Fuel Tank)
80554-1	107,000	1754	49.25 OD x 75.85 long (ICD for 80554)	1251 mm interface OD x 1927 mm long	135	61.2	250	17.2			MAVEN
80560-1	103,555	1697	35.26 ID x 120.87 boss-to-boss (ICD for 80560)	96 mm ID x 3070 mm boss-to-boss	141.7	64.27	300	20.7			GOES	Fuel
80561-1	19,000	311	21.25 ID x 65.03 flex plate-to-flex plate (ICD for 80561)	540 mm ID x 1652 mm flex plate-to-flex plate	35	15.88	300	20.7			GOES	Ox
80563-1	101,951	1671.4	50.55 OD x 65.02 boss-to-boss (ICD for 80563)	1284 mm OD x 1652 mm boss-to-boss	141.5	64.2	300	20.7	3620 lb_m	1642 kg	ComSat	Fuel Tank
80564-1	43,576	714.4	50.55 OD x 37.7 boss-to-boss (ICD for 80564)	1284 mm OD x 958 mm boss-to-boss	91.0	41.3	300	20.7	2218.5 lb_m	1006 kg	ComSat	Ox Tank
80568-1	232	3.8	5 OD x 13.9 boss-to-boss (ICD for 80568)	127 mm OD x 353 mm boss-to-boss	3	1.36	348	24			Unknown	LMP-103 HPGP
80570-1	133872	2194	46.321 OD @ tab ring x modular tank lengths (ICD for 80570)	1177 mm OD @ tab ring x modular tank lengths	173.28	78.60	300	20.68			GEO Commercial	Proprietary SP 2016_3124654
80570-2	111596	1828.73	46.321 OD @ tab ring x modular tank lengths (ICD for 80570)	1177 mm OD @ tab ring x modular tank lengths	149.69	67.90	300	20.68			GEO Commercial	Proprietary SP 2016_3124654
80570-3	92409	1514.31	46.321 OD @ tab ring x modular tank lengths (ICD for 80570)	1177 mm OD @ tab ring x modular tank lengths	129.63	58.80	300	20.68			GEO Commercial	Proprietary SP 2016_3124654
80570-4	66882	1095.99	46.321 OD @ tab ring x modular tank lengths (ICD for 80570)	1177 mm OD @ tab ring x modular tank lengths	103.18	46.80	300	20.68			GEO Commercial	Proprietary SP 2016_3124654
80570-5	41163	674.54	46.321 OD @ tab ring x modular tank lengths (ICD for 80570)	1177 mm OD @ tab ring x modular tank lengths	74.96	34.00	300	20.68			GEO Commercial	Proprietary SP 2016_3124654
80571-1	55,662	912	46.321 OD (ICD for 80571)	1177 mm OD @ tab ring x modular tank lengths	80.47	36.5	285	19.65				Proprietary
80576-1	131,282	2151	45.6 x 93 long (ICD for 80576)	1158 mm x 2362 mm long boss-to-boss	133.7	60.6	260	17.9	—	—	GEO Commercial	Stretched version of 80507SP 2016_3124654
80576-2	140,945	2310	45.6 x 99 long (ICD for 80576)	1158 mm x 2515 mm long boss-to-boss	140.8	63.9	260	17.9	—	—	GEO Commercial	Stretched version of 80507SP 2016_3124654
80577-1	26,750	438.4	28.55 DIA x54.915 long	725.17 mm DIA x1394.841 mm long	50	22.7	340	23.4				Upgrade of 80398
80589-1	22,850	374.4	29.83 DIA x 43.713 long	757.7 mm DIA x1110.3 mm long	62	28.1	315	21.7
80599-1	5,774	94.6	22.2 ID	564 ID	14.6	6.6	320	22			Lunar Lander	Derivative of 80387 shell
80601-1	104,344	1,709.91	48.9	1242.06	114.9	52.12	235	16.2			DS2000
80602-1	70,335	1,153	48.9 ID x 54 Long	1242 mm DIA x 1371.6 mm Long	82.7	37.51	250	17
80612-1	16,830	275.80	21.25″ ID X 56.43″ Long	540 x 1433mm	37.50 lbs	17.01 kg	300	20.68	16,476 in³	270.00 liter

NOTES

C. Customer proprietary surface tension device
G. Between 10 & 99.5% total volume
L. 80363-11 hast Titanium screens. 80367-11 has stainless steel screens
M. Spinner Tank
N. Proton launch compatible

PMD Tanks Data Sheets – Sorted by Volume

OA’s P/N	Total Volume (in³)	Total Volume (l)	Diameter (in)	Diameter (mm)	Weight (lb_m)	Weight (kg)	Operating Pressure (psig)	Operating Pressure (bar)	Propellant Volume / Capacity (lb_m or in³)	Program	Note
80568-1	232	3.8	5 OD x 13.9 boss-to-boss (ICD for 80568)	127 mm OD x 353 mm boss-to-boss	3	1.36	348	24		Unknown	LMP-103 HPGP
80421-1	522	8.55	5.0 Diameter x 29 long (ICD for 80421)	126 mm diameter x 717 mm long	4.25	1.93	400	27.6	522 in³	SBD/TOMS	80421 Qualified Environments
80213-1	1,232	20.2	13.33 ID (ICD for 80213)	339 mm ID	4	1.8	310	21.4	—	CLASSIFIED	C 80213 Qualified Environments
80481-1	1,232	20.2	13.33 ID (ICD for 80481)	339 mm ID	4	1.8	300	20.7	—	CLASSIFIED	80481 Protoflight Environments
80454-1	2,280	37.4	16.5 ID (ICD for 80454)	419 mm ID	11.4	5.2	300	20.7	1,520 in³	Orbital Express	Fuel
80304-1	3,575	58.6	19.03 ID (ICD for 80304)	483 mm ID	7.75	3.5	400	27.6	2,349 in³	SPACENET	C
80296-1	3,575	58.6	19.03 ID (ICD for 80296)	483 mm ID	8.0	3.6	425	29.3	—	RCA Sat COM
80353-1	3,575	58.6	19.03 ID (ICD for 80353)	483 mm ID	8.5	3.9	400	27.6	3,575 in³	MARS OBSERVER	C
80480-1	3,575	58.6	19.03 ID (ICD for 80480)	483 mm ID	7.9	3.6	300	20.7	2,349 in³	CLASSIFIED	80480 Protoflight Environments
80379-1	3,660	60	19.06 ID (ICD for 80379)	484 mm ID	10.7	4.9	377	26	3,660 in³	NEAR	M
80396-1	3,776	61.9	19.32 ID (ICD for 80396)	488 mm ID	11.5	5.2	600	41.4	VARIABLE	LUNAR PROSPECTOR
80364-1	5,580	91.5	22.14 ID (ICD for 80364)	562 mm ID	12.5	5.7	400	27.6	150 lb_m	INMARSAT 3	C
80599	5,774	94.6	22.14 ID Sphere (ICD for 80599)	562 mm ID	14.6	6.6	320	22		CLASSIFIED	C 80387 Qualified Environments
80387-1	7,700	126.2	22.14 ID x 29.47 Long (ICD for 80387)	562 mm ID x 749 mm long	20	9.3	400	27.6	220 lb_m	CLASSIFIED	C 80387 Qualified Environments
80309-1	9,210	151	22.14 ID x 32 Long (ICD for 80309)	562 mm ID x 813 mm long	17.8	8.1	318	21.9	NOTE G	CLASSIFIED	C, G
80420-1	9,210	151	22.14 ID x 32 Long (ICD for 80420)	562 mm ID x 813 mm long	17.8	8.1	318	21.9	NOTE G	BSAT	C, G 80420 Protoflight Environments
80426-1	9,712	159.2	21.25 OD x 34.69 long (ICD for 80426)	541 mm OD x 881 mm long	20	9.1	315	21.7	492 lb_m	STAR 2	Ox Tank 80426 Protoflight Environments
80375-1	9,850	161.5	24.6 ID x 29 Long (ICD for 80375)	625 mm ID x 737 mm long	19.0	8.6	420	29	253 lb_m	IRIDIUM	80375 Qualified Environments
80462-1	9,850	161.5	24.6 ID x 29 Long (ICD for 80462)	625 mm ID x 737 mm long	22.0	10.0	420	29	253 lb_m	NFIRE	80462 Protoflight Environments
80334-1	10,679	175.1	23.862 in OD x 33.312 in shoulder-to-shoulder (ICD for 80334)	606 mm OD x 846 mm shoulder-to-shoulder	28.41	12.9	255	17.6	9,274 in³	INMARSAT 2	C 80334 Qualified Environments
80433-1	12,150	199.2	22.14 ID x 39.2 Long (ICD for 80433)	562 mm ID x 994 mm long	20.00	9.1	325	22.4	95% max. fill fraction	MESSENGER	80433 Qualified Environments80433 Protoflight Environments
80310-5	13,743	225.3	23 ID x 40 Long (ICD for 80310)	584 mm ID x 1016 mm long	33.95	15.4	255	17.6	682 lb_m	EUROSTAR	C
80474-1	13,750	225.4	29.8 ID (ICD for 80474)	757 mm ID	18.6	8.4	250	17.2	98% Fill Fraction	MiTex	80474 Qualified Environments
80491-1	13,937	228	21.5 DIA x 48 Long	546.1 mm DIA x 1219.1 mm Long			300	20.7		A2100 Extended Range
80394-1	13,979	229.2	21.25 OD x 47.8 Long (ICD for 80394)	540 mm OD x 1214 mm long	25.7	11.7	300	20.7	13,979 in³	A2100 Ox Family
80406-1	13,979	229.2	21.25 OD x 47.8 Long (ICD for 80406)	540 mm OD x 1214 mm long	25.7	11.7	300	20.7	13,979 in³	A2100 Ox Family	N, C
80339-1	15,598	255.7	31.06 ID (ICD for 80339)	789 mm ID	30.1	13.7	300	20.7	549 lb_m	S-5000	C
80612-1	16,830	275.80	21.25″ ID X 56.43″ Long	540 x 1433mm	37.50 lbs	17.01 kg	300	20.68	16,476 in³
80324-1	18,390	301.5	32.84 ID (ICD for 80324)	834 mm ID	44.5	20.2	400	27.6	587 lb_m	MILSTAR	80324 Qualified Environments
80277-1	18,450	302.5	32.84 ID (ICD for 80277)	834 mm ID	32.6	14.8	250	17.2	894 lb_m NTO	INSAT	C
80561-1	19,000	311	21.25 ID x 65.03 flex plate-to-flex plate (ICD for 80561)	540 mm ID x 1652 mm flex plate-to-flex plate	35	15.88	300	20.7		GOES	Ox
80529-1	19,984	327.48	21.25 ID x 65.03 flex plate-to-flex plate (ICD for 80529)	540 mm ID x 1652 mm flex plate-to-flex plate	33.50	15.20	300	20.7		GPS	Ox
80504-1	19,984	327.48	21.25 ID x 65.03 Long	540 x 1652 mm	33.5	15.2	300	20.68	19,984 in³	BSAT-3A	Derivative of 80405
80390-1	19,984	327.6	21.25 OD x 65.03 Long (ICD for 80390)	540 mm OD x 1652 mm long	33.5	15.2	300	20.7	19,984 in³	A2100 Ox Family	N, C 80390 Qualified Environments
80405-1	19,984	327.6	21.25 OD x 65.03 Long (ICD for 80405)	540 mm OD x 1652 mm long	33.5	15.2	300	20.7	19,984 in³	A2100 Ox Family	N, C
80511-1	19,992	327.7	40.7 ID ellipsoid (ICD for 80511)	1030 mm ID	55.0	24.9	330	22.8	552 lb_m hydrazine	Proprietary	80511 Qualified Environments
80373-1	20,580	337.4	34 ID (ICD for 80373)	864 mm ID	30.5	13.8	300	20.7	20,579 in³	S7000	C 80373 Qualified Environments
80301-1	20,900	342.6	34.25 ID (ICD for 80301)	870 mm ID	34	15.4	255	17.6	1,129 lb_m	ARABSAT	C
80350-1	22,450	368	35.1 ID (ICD for 80350)	892 mm ID	28.9	13.1	260	17.9	22,450 cu. in.	HS – 601	80350 Qualified Environments
80415-1	22,450	368	35.1 ID (ICD for 80415)	892 mm ID	28.9	13.1	260	17.9	22,450 cu. in.	HS – 601 HP
80589-1	22,850	374.4	29.83 DIA x 43.713 long	757.7 mm DIA x1110.3 mm long	62	28.1	315	21.7
80527-1	22,850	374.6	29.5 ID x 43.7 Long (ICD for 80527)	749 mm ID x 1110 mm long	62.0	28.1	315	21.7	qualified to 15,835 in³	COTS/CRS
80317-105	23,400	383.6	27.68 ID x 48 Long (ICD for 80317)	703 mm ID x 1219 mm long	60	27.2	350	24.1	VARIABLE	CLASSIFIED	C
80435-1	26,345	431.9	21.3″ OD X 83.2″ Long (ICD for 80435)	541 mm OD x 2080 mm long	64.7	29.3	300	20.7	26,345 in³	ASTROLINK	ox
80577-1	26,750	438.4	28.55 DIA x54.915 long	725.17 mm DIA x1394.841 mm long	50	22.7	340	23.4			Upgrade of 80398
80356-1	26,750	438.5	28 ID x 48.5 Long (ICD for 80356)	711 mm ID x 1232 mm long	60	27.2	325	22.4	26,700 in³	CLASSIFIED
80398-1	26,750	438.5	28.5 ID x 54.99 Long (ICD for 80398)	597 mm ID x 1394 mm long	50	22.7	350	24.1	26,750 in³	SPS-95, SPS-200	80398 Qualified Environments
80495-1	28,475	466.63	42.11 OD x 83.98 Long	1069.59 mm x 2133.09 mm	260	117.94	315	21.718
80340-1	30,728	503.8	38.97 ID (ICD for 80340)	990 mm ID	37.75	17.1	276	19	1,495 lb_m	S-5000	C
80399-1	32,610	534.6	35.1 ID x 46.42 boss-to-boss (ICD for 80399)	892 mm ID x 1179 mm long	41	18.6	260	17.9	1,160 lb_m	HS – 601 HP	80399 Qualified Environments
80430-1	34,481	565.3	40.44 ID (ICD for 80430)	1027 mm ID	48	21.8	330	22.8	34,481 in³	UNKNOWN	Fuel 80430 Qualified Environments
80466-1	34,481	565.3	40.44 ID (ICD for 80466)	1030 mm ID	48	21.8	330	22.8	34,481 in³	GLAST	Fuel
80338-1	34,500	565.6	40.44 ID (ICD for 80338)	1027 mm ID	56	25.4	250	17.2	1,710 lbs.	GOES	C
80352-1	39,440	646.6	42 ID (ICD for 80352)	1067 mm ID	51.5	23.4	300	20.7	39,230 in³	MO, TELSTAR, S7000	C
80484-1	39,440	646.6	42 ID (ICD for 80484)	1067 mm ID	51.5	23.4	300	20.7	39,230 in³	SDO	80484 Protoflight Environments
80507-1	41,093	673.7	45.6 ID x 37 long (ICD for 80507)	1158 mm ID	66.82	30.31	260	17.9	41,093 in³	Commercial	Ox tank 80507 Qualified Environments SP 2016_3124654
80570-5	41,163	674.54	46.321 OD @ tab ring x modular tank lengths (ICD for 80570)	1177 mm OD @ tab ring x modular tank lengths	74.96	34.0	300	20.68
80564-1	43,576	714.4	50.55 OD x 37.7 boss-to-boss (ICD for 80564)	1284 mm OD x 958 mm boss-to-boss	91.0	41.3	300	20.7	2218.5 lb_m	ComSat	Ox Tank
80470-1	45,161	740.4	40.5 ID x 48.8 Long (ICD for 80470)	1029 mm ID x 1240 mm long	60.0	27.2	340	23.4	45,161 in³	UNKNOWN	Hydrazine 80470 Qualified Environments
80507-2	50,756	832.1	45.6 ID x 43 long (ICD for 80507)	1158 mm ID x 1092 mm long	76.75	34.81	260	17.9	50,756 in³	Commercial	Ox tank 80507 Qualified Environments SP 2016_3124654
80432-1	52,335	858	35.5 OD x 69.2 Long (ICD for 80432)	902 mm OD x 1758 mm long	67.73	30.7	300	20.7	52,335 in³	STAR-2	Fuel Derivative of P/N 80425
80476-1	52,335	858	35.5 OD x 70.23 flex plate-to-flex plate (ICD for 80476)	902 mm ID x 1784 mm flex plate-to-flex plate	63.75	28.9	300	20.7	52,335 in³	OPTUS
80518-1	52,335	858	35.5 OD x 69.2 Long (ICD for 80518)	902 mm OD x 1758 mm long	67.73	30.7	300	20.7	52,335 in³	STAR-2	Fuel
80571-1	55,662	912	46.321 OD (ICD for 80571)	1177 mm OD @ tab ring x modular tank lengths	80.47	36.5	285	19.65			Proprietary
80532-1	57,215	937.6	(ICD for 80532)		43.3	19.7				JUNO	Fuel
80425-1	57,215	938	35.5 OD x 75″ Long (ICD for 80425)	902 mm OD x 1905 mm long	67.73	30.7	300	20.7	1,980 lb_m	STAR-2	Fuel 80425 Qualified Environments
80425-101	57,215	938	35.5 OD x 75″ Long (ICD for 80425)	902 mm OD x 1905 mm long	73.0	33.1	300	20.7	1,980 lb_m	STAR-2	80425 Qualified Environments
80507-3	60,420	990.5	45.6 ID x 49 long (ICD for 80507)	1158 mm ID x 1245 mm long	83.92	38.07	260	17.9	60,420 in³	Commercial	Ox tank 80507 Qualified Environments SP 2016_3124654
80366-1	61,028	1000.5	48.9 ID (ICD for 80366)	1242 mm ID	73.2	33.2	250	17.2	61,028 in³	N-STAR	C
80380-1	61,028	1000.5	48.9 ID (ICD for 80380)	1242 mm ID	70	31.8	250	17.2	61,028 in³	TEMPO
80440-1	61,028	1000.5	48.9 ID (ICD for 80440)	1242 mm ID	70	31.8	250	17.2	61,028 in³	PSA
80535-1	62,545	1024.9	49.25 DIA x49.99 Long	1250.95 mm DIA x 1269.7 mm Long	77.5	35.2	251	17.3		Himawari
80501-1	62,545	1025.4	49.1 x 50.5 L (ICD for 80501)	1247 mm	78.0	35.4	235	16	77,805 in³	TEMPO
80503-1	64,515	1057.22	35.5 ID x 80.5 Long	901.7 x 2044.7 mm	93.2	42.28	300	20.68	64,321 in³	AEHF	Derivative of 80395
80395-1	64,515	1057.7	35.5 ID x 80.5 Long (ICD for 80395)	902 mm ID x 2045 mm long	93.2	42.3	300	20.7	61,289 in³	A2100 Fuel Family
80570-4	66,882	1095.99	46.321 OD @ tab ring x modular tank lengths (ICD for 80570)	1177 mm OD @ tab ring x modular tank lengths	103.18	46.8	300	20.68			SP 2016_3124654
80507-4	70,083	1148.9	45.6 ID x 55 long (ICD for 80507)	1158 mm ID x 1397 mm long	91.53	41.52	260	17.9	70,083 in³	Commercial	Ox 80507 Qualified Environments SP 2016_3124654
80602-1	70,335	1,153	48.9 ID x 54 Long	1242 mm DIA x 1371.6 mm Long	82.7	37.51	250	17
80404-5	73,000	1,196	52 ID Sphere	1321.9 mm			150	10.34		ICM
80507-5	76,525	1254.5	45.6 ID x 59 long (ICD for 80507)	1158 mm ID x 1499 mm long	96.60	43.82	260	17.9	76,525 in³	Commercial	Ox 80507 Qualified Environments SP 2016_3124654
80363-11	77,800	1275.4	48.9 ID x 59.66 Long (ICD for 80363)	1242 mm ID x 1515 mm long	93.5	42.4	250	17.2	77,800 in³	INTELSAT VIIA	C, L
80367-1	77,800	1275.4	48.9 ID x 59.66 Long (ICD for 80367)	1242 mm ID x 1515 mm long	93.5	42.4	250	17.2	77,800 in³	INTELSAT VIIA	C, L
80403-101	77,805	1275.4	48.9 ID x 57.8 Long (ICD for 80403)	1242 mm ID x 1468 mm long	87.61	39.7	250	17.2	77,805 in³	EXTENDED TEMPO
80422-1	77,805	1275.4	48.9 ID x 57.8 Long (ICD for 80422)	1242 mm ID x 1468 mm long	87.61	39.7	250	17.2	77,805 in³	EXTENDED TEMPO
80441-1	77,805	1275.5	48.9 ID x 57.8 Long (ICD for 80441)	1242 mm ID x 1468 mm long	91.0	41.3	250	17.2	77,805 in³	EXTENDED TEMPO
80443-1	86,050	1410.7	35.5 ID x 100.6 Long (ICD for 80443)	901 mm ID x 2553 mm long	110.9	50.3	285	19.7	81,748 in³ (95% FF)	A2100 Fuel Family
80411-1	87,575	1435.7	48.9 ID x 63.34 Long (ICD for 80411)	1242 mm ID x 1609 mm long	99.2	45	250	17.2	87,575 in³	ETS-8
80442-1	87,575	1435.7	48.9 ID x 63.34 Long (ICD for 80442)	1242 mm ID x 1609 mm long	100.5	45.6	250	17.2	87,575 in³	EXTENDED TEMPO
80456-1	87,575	1435.7	48.9 ID x 63.34 Long (ICD for 80456)	1242 mm ID x 1609 mm long	100.5	45.6	250	17.2	87,575 in³	MRO
80482-1	87,575	1435.7	48.9 ID x 63.34 Long (ICD for 80482)	1242 mm ID x 1609 mm long	99.20	45	250	17.2	87,575 in³	DS2000
80528-1	92,247	1511.68	35.26 ID x 108.87 boss-to-boss (ICD for 80528)	896 mm ID x 2765 mm boss-to-boss	122	55.34	300	20.7		GPS	Fuel
80391-1	92,247	1512.3	35.5 ID x 108.87 boss-to-boss (ICD for 80391)	896 mm ID x 2765 mm boss-to-boss	122	55.3	300	20.7	87,634 in³	A2100 Fuel Family	80391 Qualified Environments
80570-3	92,409	1514.31	46.321 OD @ tab ring x modular tank lengths (ICD for 80570)	1177 mm OD @ tab ring x modular tank lengths	129.63	58.80	300	20.68		GEO Commercial	SP 2016_3124654
80560-1	103,555	1697	35.26 ID x 120.87 boss-to-boss (ICD for 80560)	96 mm ID x 3070 mm boss-to-boss	141.7	64.27	300	20.7		GOES	Fuel
80601-1	104,344	1,709.91	48.9	1242.06	114.9	52.12	235	16.2			DS2000
80517-1	104,344	1710.6	48.9″ ID X 72.3″ Long (ICD for 80517)	1242 mm ID x 1836 mm long	130	59	250	17.2	xxx,xxx in³	LS1300	80517 Qualified Environments
80554-1	107,000	1754	49.25 OD x 75.85 long (ICD for 80554)	1251 mm interface OD x 1927 mm long	135	61.2	250	17.2		MAVEN
80570-2	111,596	1828.73	46.321 OD @ tab ring x modular tank lengths (ICD for 80570)	1177 mm OD @ tab ring x modular tank lengths	149.69	67.90	300	20.68		GEO Commercial	SP 2016_3124654
80434-1	117,154	1920.6	35.6″ OD X 133.9″ Long (ICD for 80434)	904 mm OD x 3401 mm long	208	94.3	300	20.7	117,154 in³	ASTROLINK	fuel
80471-1	117,154	1920.6	35.6″ OD X 133.9″ Long (ICD for 80471)	904 mm OD x 3401 mm long	208	94.3	300	20.7	113,639 in³	SBIRS
80576-1	131,282	2151	45.6 x 93 long boss-to-boss (ICD for 80576)	1158 mm x 2362 mm long boss-to-boss	133.7	60.6	260	17.9	– in³	GEO Commercial	SP 2016_3124654
80570-1	133,872	2194	46.321 OD @ tab ring x modular tank lengths (ICD for 80570)	1177 mm OD @ tab ring x modular tank lengths	173.28	78.60	300	20.68		GEO Commercial	SP 2016_3124654
80576-2	140,945	2310	45.6 x 99 long boss-to-boss (ICD for 80576)	1158 mm x 2515 mm long boss-to-boss	140.8	63.9	260	17.9	– in³	Commercial	SP 2016_3124654

NOTES

C. Customer proprietary surface tension device
G. Between 10 & 99.5% total volume
L. 80363-11 hast Titanium screens. 80367-11 has stainless steel screens
M. Spinner Tank
N. Proton launch compatible

PMD Tanks Data Sheets – Sorted by Part Number

OA’s P/N	Total Volume (in³)	Total Volume (l)	Diameter (in)	Diameter (mm)	Weight (lb_m)	Weight (kg)	Operating Pressure (psig)	Operating Pressure (bar)	Propellant Volume / Capacity (lb_m or in³)	Propellant Volume / Capacity (l)	Program	Note
80213-1	1,232	20.2	13.33 ID (ICD for 80213)	339 mm ID	4.00	1.8	310	21.4	—	—	CLASSIFIED	C 80213 Qualified Environments
80277-1	18,450	302.5	32.84 ID (ICD for 80277)	834 mm ID	32.60	14.8	250	17.2	894 lb_m NTO	405.5 kg	INSAT	C 80277 Qualified Environments
80296-1	3,575	58.6	19.03 ID (ICD for 80296)	483 mm ID	8.00	3.63	425	29.3	—	—	RCA Sat COM	80296 Qualified Environments
80301-1	20,900	342.6	34.25 ID (ICD for 80301)	870 mm ID	34.00	15.4	255	17.6	1,129 lb_m	512.1 kg	ARABSAT	C 80301 Qualified Environments
80304-1	3,575	58.6	19.03 ID (ICD for 80304)	483 mm ID	7.75	3.5	400	27.6	2,349 in³	38.5 liters	SPACENET	C
80309-1	9,210	151	22.14 ID x 32 Long (ICD for 80309)	562 mm ID x 813 mm long	17.80	8.1	318	21.9	Note G	Note G	CLASSIFIED	C, G
80310-5	13,743	225.3	23 ID x 40 Long (ICD for 80310)	584 mm ID x 1016 mm long	33.95	15.4	255	17.6	682 lb_m	309.4 kg	EUROSTAR	C
80317-105	23,400	383.6	27.68 ID x 48 Long (ICD for 80317)	703 mm ID x 1219 mm long	60.00	27.2	350	24.1	VARIABLE	VARIABLE	CLASSIFIED	C 80317 Qualified Environments
80324-1	18,390	301.5	32.84 ID (ICD for 80324)	834 mm ID	44.50	20.2	400	27.6	587 lb_m	266 kg	MILSTAR	C 80324 Qualified Environments
80334-1	10,679	175.1	23.862 in OD x 33.312 in shoulder-to-shoulder (ICD for 80334)	606 mm OD x 846 mm shoulder-to-shoulder	28.41	12.9	255	17.6	9,274 in³	152 liters	INMARSAT 2	C 80334 Qualified Environments
80338-1	34,500	565.6	40.44 ID (ICD for 80338)	1027 mm ID	56.00	25.4	250	17.2	1,710 lb_m	775.7 kg	GOES	C 80338 Qualified Environments
80339-1	15,598	255.7	31.06 ID (ICD for 80339)	789 mm ID	30.10	13.7	300	20.7	549 lb_m	249 kg	S-5000	C 80339 Qualified Environments
80340-1	30,728	503.8	38.97 ID (ICD for 80340)	990 mm ID	37.75	17.1	276	19	1,495 lb_m	678.1 kg	S-5000	C 80340 Qualified Environments
80348-1	11,350	186.1	28 ID (ICD for 80348)	711 mm ID	43.0	19.5	435	30	10,215 in³	167 liters
80350-1	22,450	368	35.1 ID (ICD for 80350)	892 mm ID	28.90	13.1	260	17.9	22,450 in³	3679 liters	HS – 601	80350 Qualified Environments
80352-1	39,440	646.6	42 ID (ICD for 80352)	1067 mm ID	51.50	23.4	300	20.7	39,230 in³	642.9 liters	MO, TELSTAR, S7000	C 80352 Qualified Environments80352 Protoflight Environments
80353-1	3,575	58.6	19.03 ID (ICD for 80353)	483 mm ID	8.50	3.9	400	27.6	3,575 in³	58.6 liters	MARS OBSERVER	C 80353 Protoflight Environments
80356-1	26,750	438.5	28 ID x 48.5 Long (ICD for 80356)	711 mm ID x 1232 mm long	60.00	27.2	325	22.4	26,700 in³	437.5 liters	CLASSIFIED	80356 Qualified Environments
80363-11	77,800	1275.4	48.9 ID x 59.66 Long (ICD for 80363)	1242 mm ID x 1515 mm long	93.50	42.4	250	17.2	77,800 in³	1274.9 liters	INTELSAT VIIA	C, L 80363 Qualified Environments80363 Protoflight Environments
80364-1	5,580	91.5	22.14 ID (ICD for 80364)	562 mm ID	12.50	5.7	400	27.6	150 lb_m	68 kg	INMARSAT 3	80364 Protoflight Environments
80366-1	61,028	1000.5	48.9 ID (ICD for 80366)	1242 mm ID	73.20	33.2	250	17.2	61,028 in³	1000 liters	N-STAR	C 80366 Qualified Environments80366 Protoflight Environments
80367-1	77,800	1275.4	48.9 ID x 59.66 Long (ICD for 80367)	1242 mm ID x 1515 mm long	93.50	42.4	250	17.2	77,800 in³	1274.9 liters	INTELSAT VIIA	C, L 80367 Qualified Environments80367 Protoflight Environments
80373-1	20,580	337.4	34 ID (ICD for 80373)	864 mm ID	30.50	13.8	300	20.7	20,579 in³	337.2 liters	S7000	C 80373 Qualified Environments80373 Protoflight Environments
80375-1	9,850	161.5	24.6 ID x 29 Long (ICD for 80375)	625 mm ID x 737 mm long	19.00	8.6	420	29	253 lb_m	114.8 kg	IRIDIUM	80375 Qualified Environments
80379-1	3,660	60	19.06 ID (ICD for 80379)	484 mm ID	10.70	4.9	377	26	3,660 in³	60 liters	NEAR	M
80380-1	61,028	1000.5	48.9 ID (ICD for 80380)	1242 mm ID	70.00	31.8	250	17.2	61,028 in³	1000 liters	TEMPO	80380 Qualified Environments
80387-1	7,700	126.2	22.14 ID x 29.47 Long (ICD for 80387)	562 mm ID x 749 mm long	20.00	9.1	400	27.6	220 lb_m	99.8 kg	CLASSIFIED	C 80387 Qualified Environments
80390-1	19,984	327.5	21.25 ID x 65 Long (ICD for 80391)	540 mm ID x 1652 mm long	33.50	15.2	300	20.7			A2100 Ox Family	80390 Qualified Environments
80391-1	92,247	1512.3	35.26 ID x 108.87 boss-to-boss (ICD for 80391)	896 mm ID x 2765 mm boss-to-boss	122.00	55.3	300	20.7	87,634 in³	1436.1 liters	A2100 Fuel Family	80391 Qualified Environments
80394-1	13,979	229	21.25 ID x 47.8 Long (ICD for 80394)	540 mm ID x 1214 mm long	25.7	11.7	300	20.7	13,979 in³	229.1 liters	A2100 Ox Family	80394 Qualified Environments
80395-1	64,515	1057.7	35.5 ID x 80.5 Long (ICD for 80395)	902 mm ID x 2045 mm long	93.20	42.3	300	20.7	61,289 in³	1004.3 liters	A2100 Fuel Family	80395 Qualified Environments
80396-1	3,776	61.9	19.32 ID (ICD for 80396)	488 mm ID	11.50	5.2	600	41.4	VARIABLE	VARIABLE	LUNAR PROSPECTOR
80398-1	26,750	438.5	28.5 ID x 54.99 Long (ICD for 80398)	597 mm ID x 1394 mm long	50.00	22.7	350	24.1	26,750 in³	438.4 liters	SPS-95, SPS-200	80398 Qualified Environments
80399-1	32,610	534.6	35.1 ID x 46.42 boss-to-boss (ICD for 80399)	892 mm ID x 1179 mm long	41.00	18.6	260	17.9	1,160 lb_m	526.2 kg	HS – 601 HP	80399 Qualified Environments
80403-101	77,805	1275.5	48.9 ID x 57.8 Long (ICD for 80403)	1242 mm ID x 1468 mm long	87.61	39.7	250	17.2	77,805 in³	1275 liters	EXTENDED TEMPO	80403 Protoflight Environments
80404-5	73,000	1,196	52 ID Sphere	1321.9 mm			150	10.34			ICM
80405-1	19,984	327.6	21.25 OD x 65.03 Long (ICD for 80405)	540 mm OD x 1652 mm long	33.50	15.2	300	20.7	19,984 in³	327.5 liters	A2100 Ox Family	N, C
80406-1	13,979	229.2	21.25 OD x 47.8 Long (ICD for 80406)	540 mm OD x 1214 mm long	25.70	11.7	300	20.7	13,979 in³	229.1 liters	A2100 Ox Family	N, C
80411-1	87,575	1435.7	48.9 ID x 63.34 Long (ICD for 80411)	1242 mm ID x 1609 mm long	99.20	45	250	17.2	87,575 in³	1435.1 liters	ETS-8	80411 Qualified Environments
80415-1	22,450	368	35.1 ID (ICD for 80415)	892 mm ID	28.90	13.1	260	17.9	22,450 in³	367.9 liters	HS – 601
80420-1	9,210	151	22.14 ID x 32 Long (ICD for 80420)	562 mm ID x 813 mm long	17.80	8.1	318	21.9	Note G	Note G	BSAT	C, G 80420 Qualified Environments
80421-1	522	8.55	5.0 Diameter x 29 long (ICD for 80421-1)	126 mm diameter x 717 mm long	4.25	1.93	400	27.6	522 in³	8.6 liters	SBD/TOMS	80421 Qualified Environments
80422-1	77,805	1275.5	48.9 ID x 57.8 Long (ICD for 80422)	1242 mm ID x 1468 mm long	87.61	39.7	250	17.2	77,805 in³	1275 liters	EXTENDED TEMPO	80422 Protoflight Environments
80425-1	57,215	938	35.5 OD x 75″ Long (ICD for 80425)	902 mm OD x 1905 mm long	67.73	30.7	300	20.7	1,980 lb_m	898.1 kg	STAR-2	Fuel 80425 Qualified Environments
80425-101	57,215	938	35.5 OD x 75″ Long	902 mm OD x 1905 mm long	73	33.1	300	20.7	1,980 lb_m	898.1 kg	STAR-2	Fuel
80426-1	9,712	159.2	21.25 OD x 34.69 (ICD for 80426)	541 mm OD x 881 mm long	20.00	9.1	315	21.7	492 lb_m	223.2 kg	STAR 2	Ox 80426 Qualified Environments
80430-1	34,481	565.3	40.44 ID (ICD for 80430)	1027 mm ID	48.00	21.8	330	22.8	34,481 in³	565 liters	UNKNOWN	80430 Qualified Environments
80432-1	52,335	858	35.5 OD x 69.2 Long (ICD for 80432)	902 mm OD x 1758 mm long	67.73	30.7	300	20.7	52,335 in³	857.6 liters	STAR-2	Fuel
80433-1	12,150	199.2	22.14 ID x 39.2 Long (ICD for 80433)	562 mm ID x 994 mm long	20.00	9.1	325	22.4	95% max. fill fraction	95% max. fill fraction	MESSENGER	Fuel 80433 Qualified Environments80433 Protoflight Environments
80434-1	117,154	1920.6	35.6″ OD X 133.9″ Long (ICD for 80434)	904 mm OD x 3401 mm long	208.00	94.3	300	20.7	117,154 in³	1919.8 liters	ASTROLINK	Fuel
80435-1	26,345	431.9	21.3″ OD X 83.2″ Long (ICD for 80435)	541 mm OD x 2080 mm long	64.70	29.3	300	20.7	26,345 in³	431.7 liters	ASTROLINK	Ox 80435 Qualified Environments
80440-1	61,028	1000.5	48.9 ID	1242 mm ID	70.00	31.8	250	17.2	61,028 in³	1000 liters	PSA
80441-1	77,805	1275.5	48.9 ID x 57.8 Long (ICD for 80441)	1242 mm ID x 1468 mm long	91.00	41.3	250	17.2	77,805 in³	1275 liters	EXTENDED TEMPO	80441 Protoflight Environments
80442-1	87,575	1435.7	48.9 ID x 63.34 Long (ICD for 80442)	1242 mm ID x 1609 mm long	100.50	45.6	250	17.2	87,575 in³	1435.1 liters	EXTENDED TEMPO	80442 Protoflight Environments
80443-1	86,050	1410.7	35.5 ID x 100.6 Long (ICD for 80443)	901 mm ID x 2553 mm long	110.90	50.3	285	19.7	81,748 in³ (95% FF)	1339.6 liters (95% FF)	A2100 Fuel Family
80454-1	2,280	37.4	16.5 ID (ICD for 80454)	419 mm ID	11.4	5.2	300	20.7	1,520 in³	24.9 liters	Orbital Express	Fuel
80456-1	87,575	1435.7	48.9 ID x 63.3 Long (ICD for 80456)	1242 mm ID x 1609 mm long	100.50	45.6	250	17.2	87,575 in³	1435.1 liters	MRO	Fuel and Ox
80462-1	9,850	161.5	24.6 ID x 29 Long (ICD for 80462)	625 mm ID x 736 mm long	22.0	10	420	29	9,850 in³	161.4 liters	NFIRE	Fuel 80462 Protoflight Environments
80466-1	34,481	565.3	40.44 ID (ICD for 80466)	1030 mm ID	48.00	21.8	330	22.8	34,481 in³	565 liters	GLAST	Fuel 80466 Protoflight Environments
80470-1	45,161	740.4	40.5 ID x 48.8 Long (ICD for 80470)	1029 mm ID x 1240 mm long	60.00	27.2	340	23.4	45,161 in³	740.1 liters	UNKNOWN	80470 Qualified Environments
80471-1	117,154	1920.6	35.6 ID x 133.9 Long	904 mm ID x 3401 mm long	208.00	94.3	300	20.7	113,639 in³	1862.2 liters	SBIRS
80474-1	13,750	225.4	29.8 ID (ICD for 80474)	757 mm ID	18.60	8.4	250	17.2	98% Fill Fraction	98% Fill Fraction	UNKNOWN	80474 Qualified Environments
80476-1	52,335	858	35.5 ID x 70.23 flex plate-to-flex plate (ICD for 80476)	902 mm ID x 1784 mm long	63.75	28.9	300	20.7	52,335 in³	857.6 liters	Optus
80480-1	3,575	58.6	19.03 ID (ICD for 80480)	483 mm ID	7.90	3.6	300	20.7	2,349 in³	38.5 liters	CLASSIFIED	80480 Protoflight Qualification Environment)
80481-1	1,232	20.2	13.33 ID (ICD for 80481)	339 mm ID	4.00	1.8	300	20.7			CLASSIFIED	(80481 Protoflight Qualification Environment)
80482-1	87,575	1435.7	48.9 ID x 63.35 Long (ICD for 80482)	1242 mm ID x 1609 mm long	99.20	45	250	17.2	87,575 in³	1435.1 liters	DS2000
80484-1	39,440	646.6	42 ID (ICD for 80484)	1067 mm ID	51.5	23.4	300	20.7	39,230 in³	642.9 liters	SDO	80484 Protoflight Environments
80491-1	13,937	228	21.5 DIA x 48 Long	546.1 mm DIA x 1219.1 mm Long			300	20.7			A2100 Extended Range
80495-1	28,475	466.63	42.11 OD x 83.98 Long	1069.59 mm x 2133.09 mm	260	117.94	315	21.718
80501-1	62,545	1025.4	49.1 x 50.5 L (ICD for 80501)	1247 mm	78.0	35.4	235	16	77,805 in³	1275 liters	TEMPO	Spherical version of the 49-inch family
80503-1	64,515	1057.22	35.5 ID x 80.5 Long	901.7 x 2044.7 mm	93.2	42.28	300	20.68	64,321 in³	1054.05 liters	AEHF	Derivative of 80395
80504-1	19,984	327.48	21.25 ID x 65.03 Long	540 x 1652 mm	33.5	15.2	300	20.68	19,984 in³	327.48 liters	BSAT-3A	Derivative of 80405
80506-1	16,920	277.4	27.25 ID x 22.14 long (ICD for 80506)	692 mm ID x 562 mm long	36.10	16.4	256	17.7			Commercial	Fuel (80506 Qualified Environment)
80506-2	20,340	333.5	27.25 ID x 28.14 long (ICD for 80506)	692 mm ID x 715 mm long	41.60	18.9	256	17.7			Commercial	Fuel (80506 Qualified Environment)
80506-3	23,760	389.5	27.25 ID x 34.14 long (ICD for 80506)	692 mm ID x 867 mm long	46.40	21	256	17.7			Commercial	Fuel (80506 Qualified Environment)
80506-4	27,180	445.6	27.25 ID x 40.14 long (ICD for 80506)	692 mm ID x 1020 mm long	49.45	22.4	256	17.7			Commercial	Fuel (80506 Qualified Environment)
80506-5	30,600	501.7	27.25 ID x 46.144 long (ICD for 80506)	692 mm ID x 1172 mm long	53.35	24.2	256	17.7			Commercial	Fuel (80506 Qualified Environment)
80506-6	33,450	548.4	27.25 ID x 51.14 long (ICD for 80506)	692 mm ID x 1299 mm long	56.40	25.6	256	17.7			Commercial	Fuel (80506 Qualified Environment)
80506-7	36,300	595.1	27.25 ID x 56.14 long (ICD for 80506)	692 mm ID x 1426 mm long	59.45	27	256	17.7			Commercial	Fuel (80506 Qualified Environment)
80507-1	41,093	673.7	45.60 (ICD for 80507)	1158 mm ID	66.82	30.31	260	17.9	41,093 in³	673.4 liters	Commercial	Ox (80507 Qualified Environment) SP 2016_3124654
80507-2	50,756	832.1	45.6 ID x 43 long (ICD for 80507)	1158 mm ID x 1092 mm long	76.75	34.81	260	17.9	50,756 in³	831.7 liters	Commercial	Ox (80507 Qualified Environment) SP 2016_3124654
80507-3	60,420	990.5	45.6 ID x 49 long (ICD for 80507)	1158 mm ID x 1245 mm long	83.92	38.07	260	17.9	60,420 in³	990.1 liters	Commercial	Ox (80507 Qualified Environment) SP 2016_3124654
80507-4	70,083	1148.9	45.6 ID x 55 long (ICD for 80507)	1158 mm ID x 1397 mm long	91.53	41.52	260	17.9	70,083 in³	1148.5 liters	Commercial	Ox (80507 Qualified Environment) SP 2016_3124654
80507-5	76,525	1254.5	45.6 ID x 59 long (ICD for 80507)	1158 mm ID x 1499 mm long	96.60	43.82	260	17.9	76,525 in³	1254 liters	Commercial	Ox (80507 Qualified Environment) SP 2016_3124654
80511-1	19,992	327.7	40.7 ID ellipsoid (ICD for 80511)	1030 mm ID	55.0	24.9	330	22.8	qualified to 552 lb_m of hydrazine	qualified to 250.4 kg of hydrazine	Proprietary	Hydrazine, 80511 Qualified Environments
80517-1	104,344	1710.6	48.9 ID x 72.3 long (ICD for 80517)	1242 mm ID x 1836 mm long	130.0	59	250	17.2			Commercial	Fuel and Ox 80517 Qualified Environments
80518-1	52,335	858	35.5 OD x 69.2 Long (ICD for 80518)	902 mm OD x 1758 mm long	67.73	30.7	300	20.7	52,335 in³	857.6 liters	STAR-2	Fuel
80519-1	—	—	—	—	—	—	—	—	—	—	NPOESS	NPOESS was cancelled by the government
80520-1	76,525	1254.5	45.95 ID x 59.15 long (ICD for 80520)	1158 mm ID x 1524 mm long	139.0	59	338	23.3	qualified to 54,353 in³	qualified to 890.7 liters	Proprietary	All-metal version of 80507. 80520 Qualified Environments 80520 Qualified Environments, Part 2 SP 2016_3124654
80521-1	—	—	—	—	—	—	—	—	—	—	Orion CEV NTO	Program cancelled
80521-3	—	—	—	—	—	—	—	—	—	—	Orion CEV NTO	Program cancelled
80522-1	—	—	—	—	—	—	—	—	—	—	Orion CEV MMH	Program cancelled
80522-3	—	—	—	—	—	—	—	—	—	—	Orion CEV MMH	Program cancelled
80527-1	22,850	374.6	29.5 ID x 43.7 Long (ICD for 80527)	749 mm ID x 1110 mm long	62.0	28.1	315	21.7	qualified to 15,835 in³	qualified to 259.5 liters	COTS/CRS	Hydrazine 80527 Qualified Environments
80528-1	92,247	1511.68	35.26 ID x 108.87 boss-to-boss (ICD for 80528)	896 mm ID x 2765 mm boss-to-boss	122	55.34	300	20.7			GPS	Fuel
80529-1	19,984	327.48	21.25 ID x 65.03 flex plate-to-flex plate (ICD for 80529)	540 mm ID x 1652 mm flex plate-to-flex plate	33.50	15.20	300	20.7			GPS	Ox
80532-1	57,215	937.6	(ICD for 80532)		43.3	19.7					JUNO	Fuel
80533-1											JUNO	Ox
80535-1	62,545	1024.9	49.25 DIA x49.99 Long	1250.95 mm DIA x 1269.7 mm Long	77.5	35.2	251	17.3			Himawari
80540-1	1,892	31	15.38 ID (ICD for 80540)	391 mm ID	5.4	2.45	250	17.2	1,835 in³	30.1 liters	LADEE	80540 Qualified Environments
80545-1	15685	257	26.63 OD x 40.737 Long (ICD for 80545)	676 mm OD x 1035 mm long	36.4	16.5	350	24	392 lb_m N₂H₄	177.8 kg N₂H₄	JWST	Fuel
80546-1	7996	131	26.63 OD x 29.058 Long (ICD for 80546)	676 mm OD x 738 mm long	24.2	11	350	24	291 lb_m N₂O₄	132 kg N₂O₄	JWST	Ox (this is a shorter version of the Fuel Tank)
80554-1	107,000	1754	49.25 OD x 75.85 long (ICD for 80554)	1251 mm interface OD x 1927 mm long	135	61.2	250	17.2			MAVEN
80560-1	103,555	1697	35.26 ID x 120.87 boss-to-boss (ICD for 80560)	96 mm ID x 3070 mm boss-to-boss	141.7	64.27	300	20.7			GOES	Fuel
80561-1	19,000	311	21.25 ID x 65.03 flex plate-to-flex plate (ICD for 80561)	540 mm ID x 1652 mm flex plate-to-flex plate	35	15.88	300	20.7			GOES	Ox
80563-1	101,951	1671.4	50.55 OD x 65.02 boss-to-boss (ICD for 80563)	1284 mm OD x 1652 mm boss-to-boss	141.5	64.2	300	20.7	3620 lb_m	1642 kg	ComSat	Fuel Tank
80564-1	43,576	714.4	50.55 OD x 37.7 boss-to-boss (ICD for 80564)	1284 mm OD x 958 mm boss-to-boss	91.0	41.3	300	20.7	2218.5 lb_m	1006 kg	ComSat	Ox Tank
80568-1	232	3.8	5 OD x 13.9 boss-to-boss (ICD for 80568)	127 mm OD x 353 mm boss-to-boss	3	1.36	348	24			Unknown	LMP-103 HPGP
80570-1	133872	2194	46.321 OD @ tab ring x modular tank lengths (ICD for 80570)	1177 mm OD @ tab ring x modular tank lengths	173.28	78.60	300	20.68			GEO Commercial	Proprietary SP 2016_3124654
80570-2	111596	1828.73	46.321 OD @ tab ring x modular tank lengths (ICD for 80570)	1177 mm OD @ tab ring x modular tank lengths	149.69	67.90	300	20.68			GEO Commercial	Proprietary SP 2016_3124654
80570-3	92409	1514.31	46.321 OD @ tab ring x modular tank lengths (ICD for 80570)	1177 mm OD @ tab ring x modular tank lengths	129.63	58.80	300	20.68			GEO Commercial	Proprietary SP 2016_3124654
80570-4	66882	1095.99	46.321 OD @ tab ring x modular tank lengths (ICD for 80570)	1177 mm OD @ tab ring x modular tank lengths	103.18	46.80	300	20.68			GEO Commercial	Proprietary SP 2016_3124654
80570-5	41163	674.54	46.321 OD @ tab ring x modular tank lengths (ICD for 80570)	1177 mm OD @ tab ring x modular tank lengths	74.96	34.00	300	20.68			GEO Commercial	Proprietary SP 2016_3124654
80571-1	55,662	912	46.321 OD (ICD for 80571)	1177 mm OD @ tab ring x modular tank lengths	80.47	36.5	285	19.65				Proprietary
80576-1	131,282	2151	45.6 x 93 long (ICD for 80576)	1158 mm x 2362 mm long boss-to-boss	133.7	60.6	260	17.9	—	—	GEO Commercial	Stretched version of 80507SP 2016_3124654
80576-2	140,945	2310	45.6 x 99 long (ICD for 80576)	1158 mm x 2515 mm long boss-to-boss	140.8	63.9	260	17.9	—	—	GEO Commercial	Stretched version of 80507SP 2016_3124654
80577-1	26,750	438.4	28.55 DIA x54.915 long	725.17 mm DIA x1394.841 mm long	50	22.7	340	23.4				Upgrade of 80398
80589-1	22,850	374.4	29.83 DIA x 43.713 long	757.7 mm DIA x1110.3 mm long	62	28.1	315	21.7
80599-1	5,774	94.6	22.2 ID	564 ID	14.6	6.6	320	22			Lunar Lander	Derivative of 80387 shell
80601-1	104,344	1,709.91	48.9	1242.06	114.9	52.12	235	16.2			DS2000
80602-1	70,335	1,153	48.9 ID x 54 Long	1242 mm DIA x 1371.6 mm Long	82.7	37.51	250	17
80612-1	16,830	275.80	21.25″ ID X 56.43″ Long	540 x 1433mm	37.50 lbs	17.01 kg	300	20.68	16,476 in³	270.00 liter

NOTES

C. Customer proprietary surface tension device
G. Between 10 & 99.5% total volume
L. 80363-11 hast Titanium screens. 80367-11 has stainless steel screens
M. Spinner Tank
N. Proton launch compatible

Propellant Management Device (PMD) tanks

40" dia PMD Tank, P/N 80466

35" dia x 109" Long PMD Tank, P/N 80391

Loading component...

5" dia x 29" Long PMD Tank, P/N 80421

Loading component...

22" dia x 32" Long PMD Tank, P/N 80420

Loading component...

PMD Tanks Data Sheets – Sorted by Volume

NOTES

Loading component...

PMD Tanks Data Sheets – Sorted by Part Number

Loading component...

Contact Us

Loading component...

35" dia x 109" Long PMD Tank, P/N 80391

5" dia x 29" Long PMD Tank, P/N 80421

22" dia x 32" Long PMD Tank, P/N 80420

PMD Tanks Data Sheets – Sorted by Volume

NOTES

PMD Tanks Data Sheets – Sorted by Part Number
