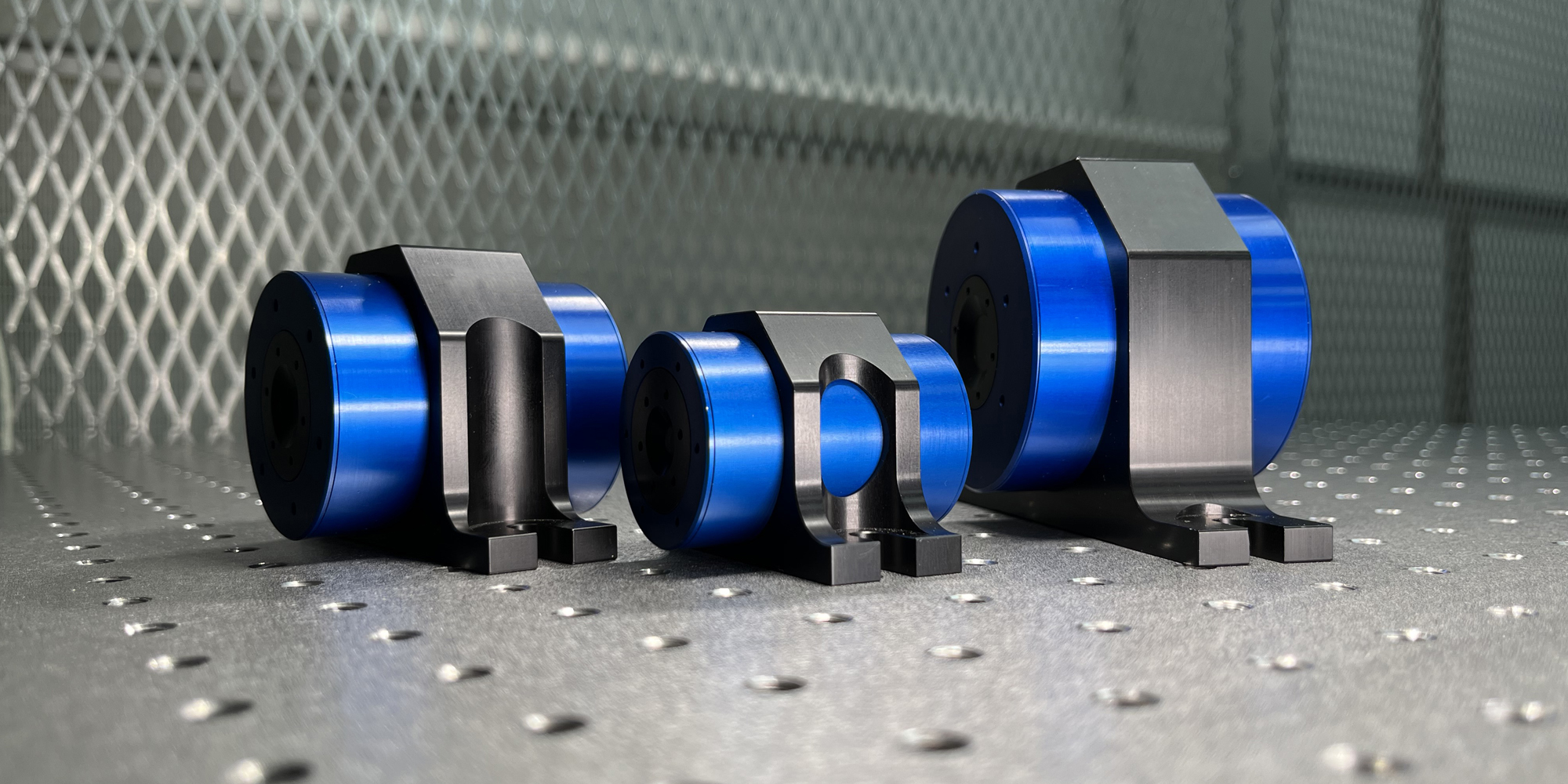

Faraday Rotator Devices

Our Faraday Rotator are manufactured with customized materials and coatings tailored for each application. While standard sizing ranges from 5mm, 8 mm, and 12mm, other sizes are available upon request.

Contact an expert

Key Features

Product Specifications

	TGG	KTF
Transparency range	400 - 1500nm
Transmission @ 1064nm	>95%
Extinction	>36dB Nominal >30dB Minimum
Rotation Angle (degrees)	45 +/- 1
Damage Threshold (1um region)	10J/cm² @ 10ns 500kW/cm²
Absorption @ 1064nm	~0.16%/cm	~0.02%/cm
Thermo-optic coefficient (dn/dT)	17.910^-6/K	-9.7x10^-6/K

For specific mechanical dimensions of the Faraday Rotator devices or more information on our opto-mechanical assembly capabilities, contact our team of dedicated experts.
